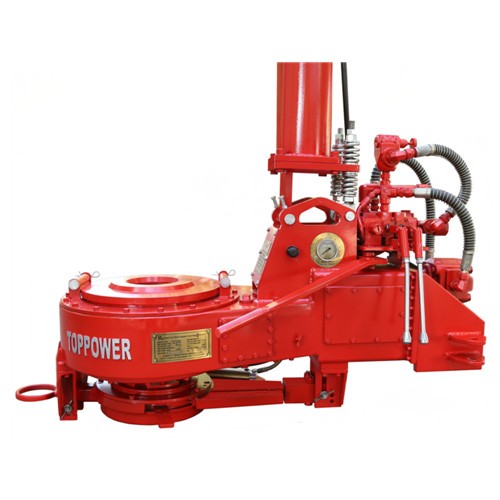

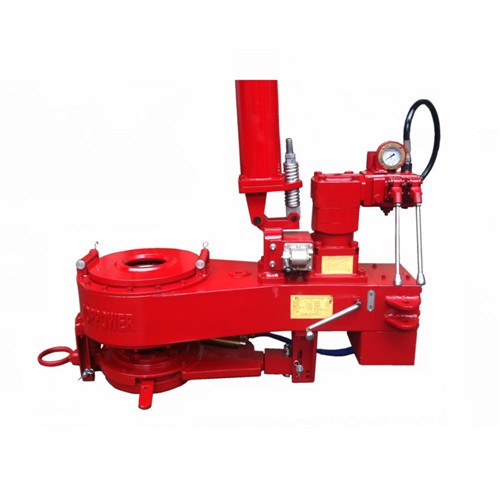

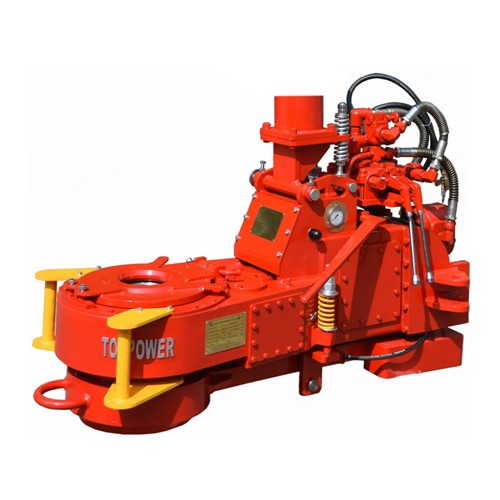

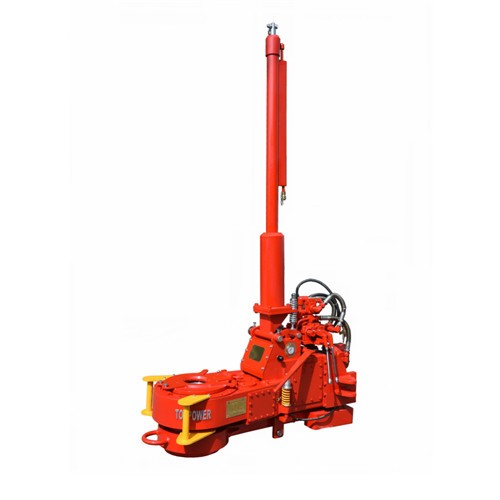

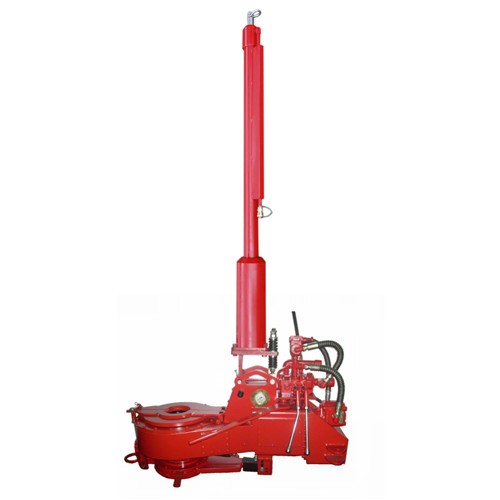

YQ seires closed-head tongs

YQ Series Hydraulic power tongs are closed-head with variable torque, hydraulic lift, pressure oil bath lubrication, gear train, roller chain final drive and two-speed operation, using advance technology from foreign country. It adopts special five-jaw tubing clamping technology and drive system, so it can perform safe, convenient and effective clamping, making-up and breaking-out of tubing, small casing and small drill rod of different specifications. It is an ideal tool for repairing well in oil field.

Features：

1. Circular friction clutch device, high and low gear can be shifted when it works normally.

2. Closed-head, increasing service life, more safer.

3. Chain-drive, more stable operation.

4. Independent lubrication system .

5 Five-jaw clamping technology more effectively.

6.Hydraulic lifter and torque arm (Optional).

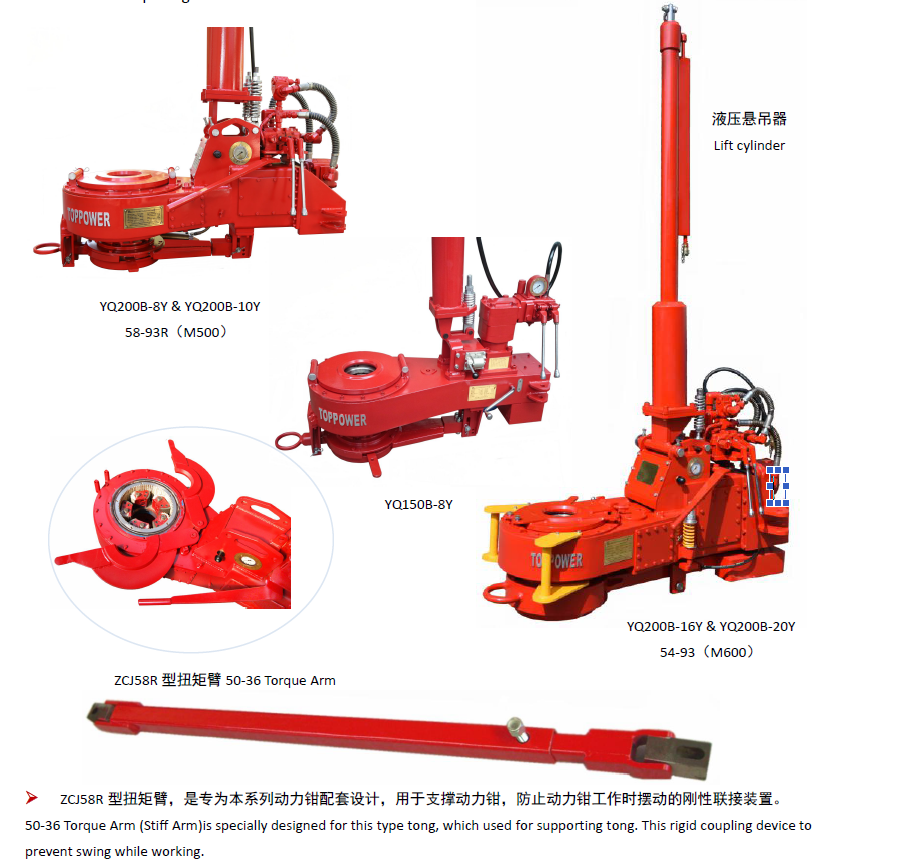

YQ closed 2.png
